Adjustable motor speed
Select speeds from 0 to 40,000 rpm in 500 rpm steps. The foot pedal offers motor on/off control or variable speed according to pedal pressure.
HAIR TRANSPLANT EQUIPMENT
METAPHARM MTP-HF10
Follicular extraction. Control at each step.

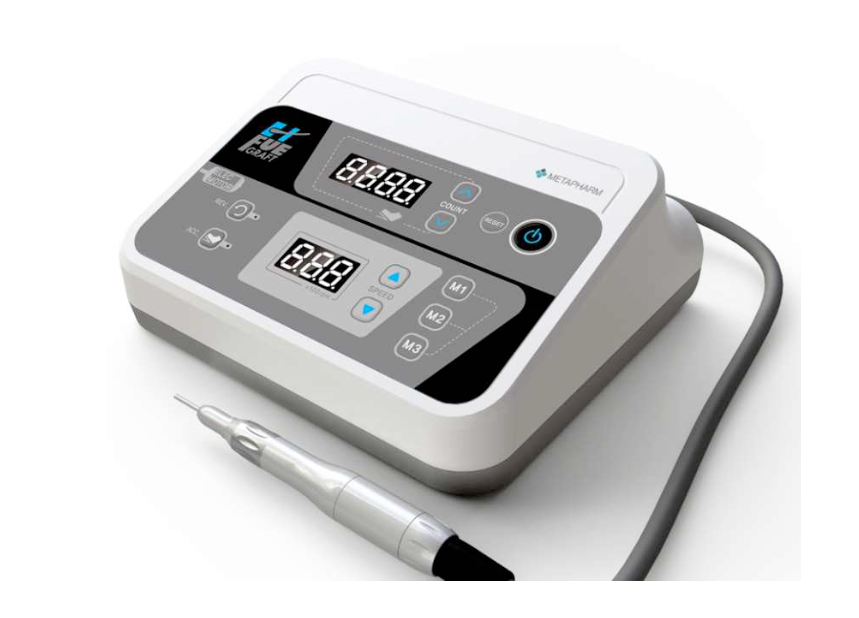

A motor controller and handpiece system for harvesting follicles from the donor scalp. Speed adjustment up to 40,000 rpm, foot control and three programme memories.
View product catalogLegal documents
Three programme memories
M1–M3 store and recall speed, rotation direction and LED settings, allowing the physician to switch between saved configurations.
Procedure activity counter
The counter advances with each pedal activation and permits manual correction. Its reading should be reconciled with the actual number of follicles harvested.
PRODUCT DESIGN
Centralised controls on one panel.

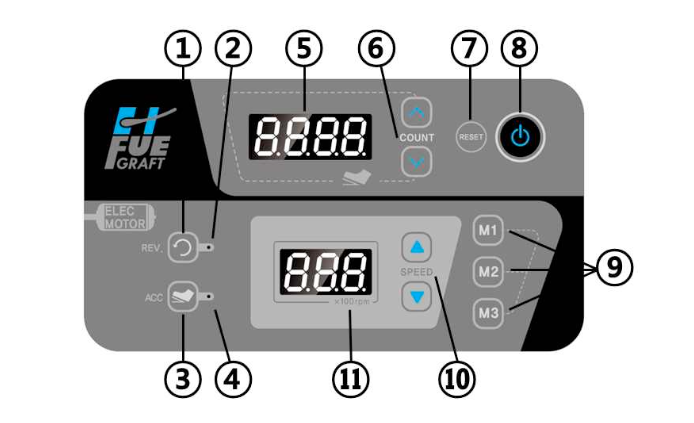

The front panel brings together the speed and count displays, rotation direction, pedal mode and programme controls. The rear panel connects the foot pedal, handpiece and power supply.
Choose a product configurationProduct specifications
- Model
- MTP-HF10
- Manufacturer
- Metapharm Co., Ltd. · South Korea
- Speed range
- 0–40,000 rpm
- Speed increment
- 500 rpm
- Programme memories
- 3 · M1 / M2 / M3
- Power supply
- 100–240 V~, 50/60 Hz
- Controller dimensions
- 215 × 195 × 80 mm
- Motor / handpiece
- DC 14,4 V · 165 g · Ø20 × 132 mm
PRODUCT CATALOG
METAPHARM MTP-HF10

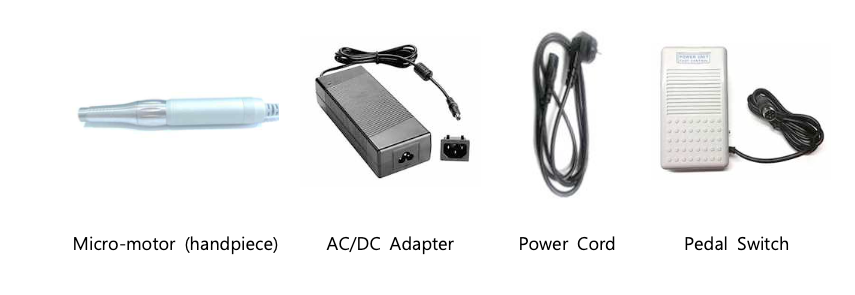

The device set comprises the controller, micromotor and handpiece, AC/DC adapter, power cord and foot control.
Documents & use information
MTP-HF10 instructions · VietnameseMTP-HF10 supports follicle harvesting from the donor area; follicle placement requires an appropriate implantation instrument. Use is restricted to licensed physicians. Follow the operating, cleaning and sterilisation instructions for each component.
